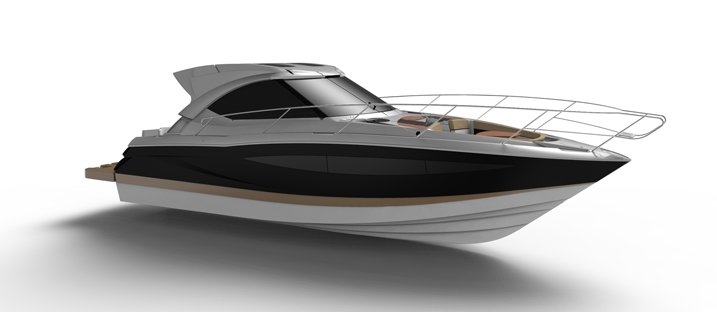

Horizon Series H440
DISCOVER THE HORIZON SERIES H440
This is the largest bowrider on the market. Period. All 44 feet are designed for the ultimate in comfortable living and generous entertaining. Among the many amenities is the hydraulic table, which lowers to become a spacious sun area, and the large head with an enclosed shower.
VIRTUAL TOUR: http://fourwinns.tezmarin.com/virtual-tour/H440.htm
NOTABLE FEATURES
Volvo Penta IPS™ joystick
Large bow seating area
Hydraulic bow table
Bow fill-in cushion
Hardtop with sunroof
40″ TV in cabin
Transom grill
Cockpit fridge & icemaker
Fusion® stereo w/app.
SPECIFICATIONS:
| US | Metric | |
|---|---|---|
| LOA | 43′ 6” | 13.3 m |
| Beam | 13′ 4” | 4.07 m |
| Fuel Capacity | 300 gal | 1,130 L |
| Draft (Static) | 44” in | 112 cm |
| Maximum Capacity | Yacht lbs | Yacht kg |
| Persons Capacity | 16 USA | 16 CE |
| Approx. Boat & Engine Weight | 26,000 lbs | 12,700 kg |
| Deadrise | 19º | 19º |
| Bridge Clearance w/Arch (excludes electronics) | 12′ 8” | 3.86 m |
| Total Height w/Arch (excludes electronics) | 13′ 9″ | 4.19 m |
| Potable Water (standard or optional) | 85 gal | 321 L |
| Holding Tank | 53 gal | 200 L |
| Gray Water | 45 gal | 170 L |
| Generator | 10 kw @ 110 VAC | 10 kw @ 110 VAC |
| Generator | 8 kw @ 220 VAC | 8 kw @ 220 VAC |
| Air Conditioning/Heater (Cabin) | 24,000 BTU | 24,000 BTU |
| Air Conditioning/Heater (Cockpit) | 16,000 BTU | 16,000 BTU |
| Headroom (max) | 7′ 1” | 2.16 m |
| Maximum capacity-Hydraulic swim | 1000 lbs |
454 kg |
STANDARDS:
Bow:
- Bow fill-in cushion
- Cooler, fixed
- Courtesy Light
- Electric Table
- Lounge seats
- Speaker Stereo, 5
- Tray storage w/drink holders
Hull and Deck:
- Anchor line locker, w/access lid
- Washdown
- Fender storage
- Bow rails, high profile, welded one-piece, stainless steel
- Deck Hatch
- Dockside power w/Cablemaster
- Engine compartment ventilators
- Fiberglass stringers
- Gel scheme, all white
- Gel scheme, gel accent stripe: five color choices
- Hard top, enclosed w/multi color lights
- Skylights (2)
- Sunroof, extra large, powered
- Walk-thru foredeck access
- Windshield shade
- Meets applicable USCG & Canadian Regulations
- NMMA and CE certified
- Port lites, extra large curved hull windows
- Remote control spotlight
- Swim platform, aft
- Courtesy lights, blue
- Ladder, angled, deep-reach, hidden, w/wide-step pads
- Storage tub
- Transom grill, electric
- Windshield w/walk-thru
- Curved glass, exclusive design
- Full aluminum frame
- Windshield wiper, port and starboard
- Windlass, w/rope, chain, anchor and dual controls
- Anchor, stainless steel
Cockpit:
- Assist handle(s), stainless steel
- Aquaflex™ white vinyl w/Silvertex™ color vinyl
- Cooler, built-in, under bench seat
- Courtesy light, blue LED
- Engine hatch, electric lift
- Fiberglass liner, self-bailing
- Flooring, carpet, lay-in
- Refreshment/Galley center
- Countertop, solid surface
- Icemaker (1) exchange for Refrigerator (2nd)
- Refrigerator (1) exchange for Ice maker (1)
- Sink
- Trash receptacle(s)
- Seating
- Adjustable driver’s seat
- Double wide helm w/flip-up bolsters
- Port lounge
- U-shaped stern seating
- Ship’s bell
- Storage
- Beneath aft seat
- Beneath armrest
- Sidewall
- Sunlounge, one-touch automatic conversion
- Table, wood w/ high gloss finish
Helm:
- Compass
- Controls, dual binnacle, electronic w/IPS Joystick
- Dash, includes space for electronics
- Emergency start remote switch
- Helm cover, canvas
- Instrument panel, charcoal
- Instrumentation, Volvo Penta Electronic Vessel Control (2), including fuel level, oil pressure, tachometer, Hour meter, temperature, voltage and fuel flow
- Receptacle/charger 12 VDC at helm
- Steering wheel, premium, tilt
Engine Systems – Drive:
- Batteries
- Battery charger, converter
- Battery management system
- Bilge blower
- Bilge pump, automatic
- Color-coded wiring w/chafe protection
- Dockside power
- Dockside power, cable master
- Fire extinguisher
- Lighted engine compartment
- Generator
- Requires dockside power
- Props, Nibral
- Shore power galvanic isolator
- Twin fuel tanks w/fuel selector valves
- Water heater package
- Includes water heater and transom shower
Entertainment:
- Bose® surround sound system in cabin
- iPod®-ready/MP3 ports, cabin and helm
- Premium Sound System
- Speakers
- Stereo remote at helm
- Stereo remote w/display at transom
- Stereo, Fusion® AM/FM/Bluetooth Connectivity/Wifi
- TV, flatscreen and DVD player, cabin, 2
Cabin:
- Air conditioning/heating
- Cabinetry wood choice
- Choice of dark cherry (gloss) or light maple (matte)
- Cabin door, acrylic w/screen
- Cabin height (maximum)
- Cabin panel, 110 VAC (220 VAC, International)
- Central vacuum
- CO (carbon monoxide) monitor (s)
- Flooring, true hardwood
- Interior décor choices: neutral or midnight
- Lighting
- Courtesy floor lighting
- Multi-zone lighting system
- Sheets, fitted
- Storage, cabin
- Overhead, under seat
Galley:
- Coffee maker
- Countertop, solid surface, with sink and cover/cutting board
- Lighting, under cupboard
- Microwave / Convection, 110 VAC (220 international)
- Refrigerator/freezer, dual voltage, 110 VAC, 12 VDC (220 VAC international)
Head and Shower:
- Door(s), woodgrain, locking
- Fiberglass enclosed stand-up head
- Separate shower w/acrylic door
- Head, porcelain w/holding tank
- Lighting, overhead
- Power ventilation
- Receptacle, 110 VAC (220 VAC international)
- Sink w/solid surface countertop
- Storage
- Vanity, upper and lower
- Tank level indicators, potable water & waste
- Sump pump, shower
- Towel rack
- Vanity mirror
Mid Cabin or Mid Stateroom:
- Layout
- Choice of Island Bed or Wrap-Around Couch (converts to bed)
- Throw pillows, sham package
Salon:
- Lighting, overhead
Forward Berth and Stateroom:
- Private stateroom, forward
- Throw pillows, sham package
- Twin single bed berths
Canvas:
- Camper canvas w/stainless steel hardware
- Forward cover
Customer Care:
- Winning Edge Owner Protection Plan
OPTIONS:
Power:- Volvo Penta® Twin IPS 500 w/Joystick
- Volvo Penta® Twin IPS 600 w/Joystick
Hull and Deck:
- Flagpole and holder (flag not included)
- Gel scheme, Classic Color Band (CCB): Deep Navy, Steel Grey or Jet Black
- Swim platform, aft
- Swim platform chocks
- Real teak
- Swim platform, Hydraulic lift
- Swin platform chocks
- Table w/mount, transom
- Table, teak w/mount, transom
- Underwater lighting
Cockpit:
- Air conditioning, 32,000 BTUs
- Camera, Nightvision (FLIR), requires navigation package
- Flooring, real teak
- Pillows, cockpit, Ruby red or Lavender bliss
- Refrigerator, cockpit
Helm:
- Autopilot, P70R Smartpilot (Requires Navigation Package)
- Navigation Package
- Aft Video Camera
- DSM 30 digital depth sounder
- E127 GPS/chart plotter (2)
- Radar w/4kw HD open array
- RayMarine VHF-260 [CE VHF radio is RayMarine 260E]
- Sirius™ Satellite Marine Weather
Engine Systems:
- Engine oil changing system
